THOMSON LINEAR引领着线性运动技术的创新，服务的行业范围广泛，包括包装、工厂自动化、物料搬运、医疗、移动式非公路车辆、清洁能源、印刷、汽车、机床。THOMSON LINEAR主营产品有：滚珠丝杠、线性执行器、轴承等。
| |
General Specifications | |
Parameter | PC32 |
Profile size (w × h) | 45 × 45 mm |
Type of screw | ball screw |
Protection class | IP65 |
Lubrication | one point lubrication of ball screw |
Performance Specifications | |
Stroke length (S max), minimum - maximum | 80 - 1200 mm |
Linear speed, maximum | 1 m/s |
Acceleration, maximum | 10 m/s2 |
Repeatability | 0.01 ± mm |
Input speed, maximum | 6000 rpm |
Operation temperature limits | -20 – +70 °C |

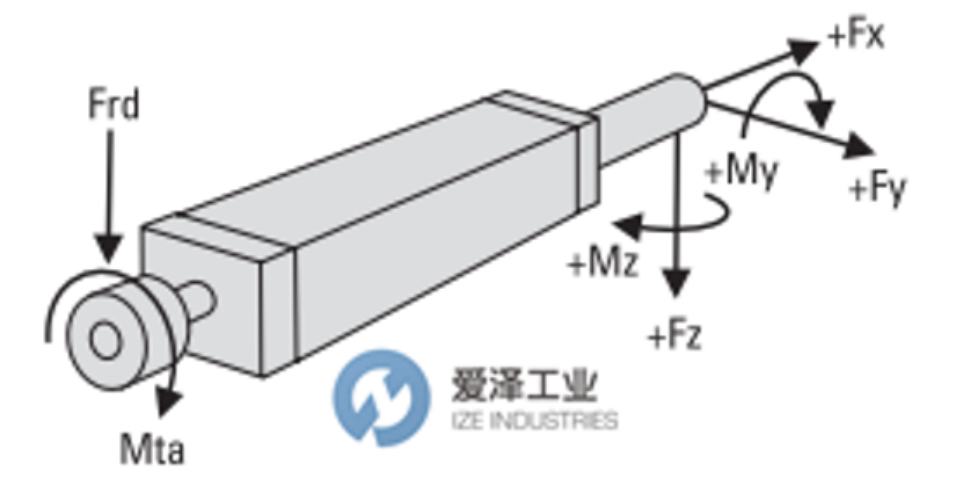

Dynamic load (Fx), maximum | 3200 N |
Dynamic load (Fy), maximum | 20 N |
Dynamic load (Fz), maximum | 20 N |
Dynamic load torque (Mz, My), maximum | 25 Nm |
Screw versions, diameter (d0) / lead (p) | 12/04, 12/10 mm |
Drive shaft force (Frd), maximum | 300 N |
Input torque, maximum (RediMount models) | 5.1 Nm |
Drive shaft torque (Mta), maximum | 9.2 Nm |
THOMSON LINEAR执行器PC系列介绍
汤姆逊PC系列电动直线驱动装置采用可靠、高性能且结构紧凑的设计，优化了机器设计并实现了节能效果。与市场上其他同类产品相比，这些型号性能更强劲、速度更快、行程更远，因此能够提供卓越的性能。PC系列提供丰富的配件和选件，包括伺服电机，几乎适用于任何应用。
由于采用了更大、更高精度的滚珠丝杠组件，PC系列执行器的行程寿命长，行程距离是同类竞争执行器的四倍。
Thomson PC Series provides optimized machine design and energy savings through reliable, high-performance and compact electric linear actuation. These models are designed to deliver superior performance as they are stronger, faster and longer-reaching than other comparable units on the market. The PC Series offers a broad range of accessories and options, including servo motors, making them ideal for virtually any application.
The PC Series offers unmatched travel life, delivering up to four times more travel distance than comparable competitive actuators due to its larger, high-precision ball screw assembly.
THOMSON LINEAR执行器PC系列其他常用型号：
THOMSON LINEAR PC25PA104B10-0600CM1
THOMSON LINEAR PC25PA110B10-0500XM1
THOMSON LINEAR PC25PA116B10-0200FM1
THOMSON LINEAR PC25PA367B03-0070CF1
THOMSON LINEAR PC25PA367B03-0070RF1
THOMSON LINEAR PC25PA367B10-0200FF1
THOMSON LINEAR PC25SXXXXB03-0310XM1
THOMSON LINEAR PC25SXXXXB10-0310XM1
THOMSON LINEAR PC32-10002
THOMSON LINEAR PC32-10003
THOMSON LINEAR PC32LX004B10-0100PM1
THOMSON LINEAR PC32LX004B10-0200MM1
THOMSON LINEAR PC32LX098B10-0900MM1
THOMSON LINEAR PC32LX114B10-0320XM1
THOMSON LINEAR PC32LX367B04-0100TM1
THOMSON LINEAR PC32PA001B04-0350XM1
THOMSON LINEAR Actuator NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于THOMSON LINEAR执行器PC32PA073B04-0200CJ1的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for THOMSON LINEAR products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
THOMSON LINEAR执行器PC系列PC32PA073B04-0200CJ1技术参数及介绍
