TAIYO流量开关DFS3-1000技术参数
Specifications | |
Model | DFS3-1000/5000 |
Flow rate level | Medium |
Type | Plastic body (Standard type) |
Detection method | Magnetic proimityiron proximity |
Material of body | Polyacetal (glass-filled) |
Working fluid | Water |
Port size | Rc3/8 |
Pressure range | 0 to 1.0 MPa |
Proof test pressure | 1.5 MPa |
Ambient temperature | 0 to +50°C (No condensing) |
Fluid temperature | 0 to +70°C (No freezing) |
Flow rate range | Flow rate range A: 0.5 to 5 l/min, Flow rate range B: 2.5 to 25l/min |
Reading accuracy | 土5%fs |
Hysteresis | 5% or less |
Alarm output response time | Approx.500 ms |
Installing direction | Free |
Flowing direction | Both directions |
Number of output points | 1c contact Relay output X1 point or open collector output X 2 points (1 point for each of OUT-HIGH and OUT-LOW) |
Rated power supply | 24 V DC or 100 V AC |
TAIYO流量开关DFS3系列介绍
除了常规的主机规格外，高流量规格还增加了不锈钢机身。
除了具有更大触点容量的功率继电器输出外，还增加了开集电极输出规格。
增强了抗噪能力。
In addition to the standard main unit specifications, the high-flow specifications also feature a stainless steel chassis.
Besides power relay outputs with larger contact capacity, an open-collector output specification has been added.
Noise immunity has been enhanced.

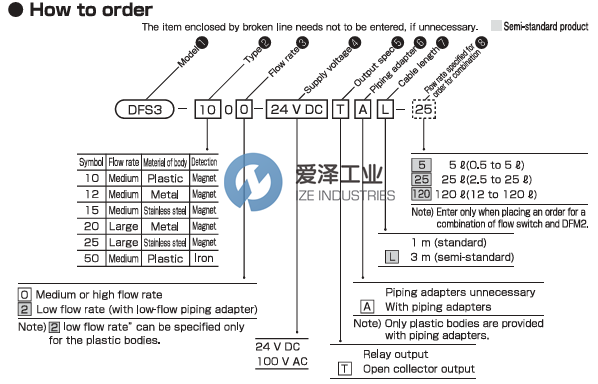

TAIYO流量开关DFS3系列选型
TAIYO流量开关DFS3系列其他常用型号：
TAIYO DFS3-1000-DC24V
TAIYO DFS3-1200-DC24V
TAIYO DFS3-2000-DC24V
TAIYO DFS3-5000-DC24V
TAIYO DFS3-1500-DC24V
TAIYO DFS3-1000-DC24VT
TAIYO flow switch NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于TAIYO流量开关DFS3-1000-DC24V的疑问，请随时与我们电联，（021-3100 6702），我们将尽全力解决您的问题。
If you have any question for TAIYO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
TAIYO流量开关DFS3系列DFS3-1000-DC24V技术参数及选型
