Possible applications

• Platform scales
• Small belt scales

Type of construction

Single point load cell

Loads

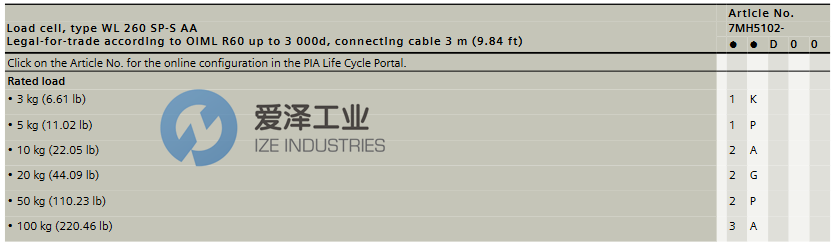

Rated load Emax

• 3 kg (6.61 lb)
• 5 kg (11.02 lb)
• 10 kg (22.05 lb)
• 20 kg (44.09 lb)
• 50 kg (110.23 lb)
• 100 kg (220.46 lb)

Minimum initial loading Emin

0% Emax

Maximum working load Lu

150% Emax

Breaking load Ld

300% Emax

Safe side load Llq

100% Emax

Measurement characteristic values

Rated displacement hn at Emax

< 0.6 mm (0.024 inch)

Rated characteristic value Cn

2.0 ± 0.2 mV/V

Tolerance D0 of zero signal

< ± 2 % Cn

Maximum scale interval nLC

3000

Minimum scale interval Vmin

E max/12 000

Combined error Fcomb

± 0.02% Cn

Repeatability Fv

± 0.017 % Cn

Creep error Fcr

• 30 min

± 0.02% Cn

Temperature coefficient

• Zero signal Tko

0.02% Cn/10 K

• Characteristic value TKc

0.0175% Cn/10 K

Electrical characteristic values

Recommended reference voltage Uref

5 ... 12 V DC

Input resistance Re

409 Ω ± 6 Ω

Output resistance Ra

350 Ω ± 3 Ω

Insulation resistance Ris

5 000 MΩ at 50 V DC

Connection and environmental conditions

Rated temperature range Btn

-10 ... +40 °C (+14 ... +104 °F)

Operating temperature range Btu

-35 ... +65 °C (-31 ... +149 °F)

Storage temperature range Bts

-35 ... +65 °C (-31 ... +149 °F)

Sensor material (DIN)

Aluminum

Maximum tightening torque of the fixing screws

15 ... 20 Nm

Degree of protection to EN 60529; IEC 60529

IP65

Cable connection

Function

Color

• EXC + (supply +)

Red

• EXC – (supply -)

Black

• SIG + (measured signal +)

Green

• SIG – (measured signal -)

White

• Sense + (sensor cable +)

Blue

• Sense - (sensor cable -)

Brown

• Shield (not connected to the load cell body)

Transparent

Certificates and approvals

Accuracy class according to OIML R60

C3
