KENCO气动浮球开关KPFS系列技术参数
Specification | |
Specific Gravity | ≥ 0.53 |
Wetted Parts | Standard: 303/304 Stainless Steel |
Process Connection Size | Standard: 2” NPT |
Pneumatic Valve Connection Size | Inlet: 1/8” NPT |
Maximum Temperature Rating | 257°F |
Process Pressure Range | Vacuum to 2000 psi |
Valve Inlet Pressure Range | 30 to 75 psi |
KENCO气动浮球开关KPFS系列介绍
KENCO KPFS型利用浮子来检测工艺连接处容器内是否存在液体。浮子臂组件一端为浮子，另一端为磁铁。当容器内液位上升时，浮子上升，磁铁下降。磁铁驱动压力边界另一侧的第二个磁铁。该第二个磁铁是速动开关中的反应元件，用于控制气动阀的开启和关闭。由于其设计特性，几乎无需调整。如果需要调整，则可通过提供的便捷调节螺钉进行操作。KPFS型号用于驱动气动排污阀，例如KDV系列排污阀，以控制洗涤器、分离器和其他容器中的液体。压力边界内没有密封件；它是一个实心不锈钢屏障，磁场可以穿过，但液体无法通过。工艺液体不可能通过该屏障进入开关外壳。 KPFS型气动浮球开关可根据需求选择不同的开启方式：当检测到液位上升时开启气动阀（-LR选项），或当检测到液位下降时开启气动阀（-LF选项）。此外，还配备手动阀门执行器，可根据需要手动开启阀门。
The KENCO Model KPFS uses a float to determine the presence or absence of liquid in a vessel at the process connection. The float arm assembly consists of a float at one end and a magnet at the other. As the level in the vessel rises, the float rises and the magnet falls. The magnet actuates a second magnet on the other side of the pressure boundary. This second magnet is the reactive component in the snap acting switch that opens and closes the pneumatic valve. Because of the nature of the design, adjustment is rarely, if ever needed. In the event that adjustment is needed, an easy to use adjustment screw is provided. The Model KPFS is used to actuate pneumatic dump valves, such as the Model KDV Series Dump Valve, to control liquids in scrubbers, separators and other vessels. The pressure boundary contains no seals; it is a solid stainless steel barrier that passes a magnetic field, but no liquids. It is impossible for the process liquid to enter the switch enclosure through this barrier. The Model KPFS Pneumatic Float Switch can be ordered to have the pneumatic valve open when it senses a liquid level rising (-LR option) or open when it senses the liquid level falling (-LF option). A manual valve actuator is provided to open the valve manually, if desired.

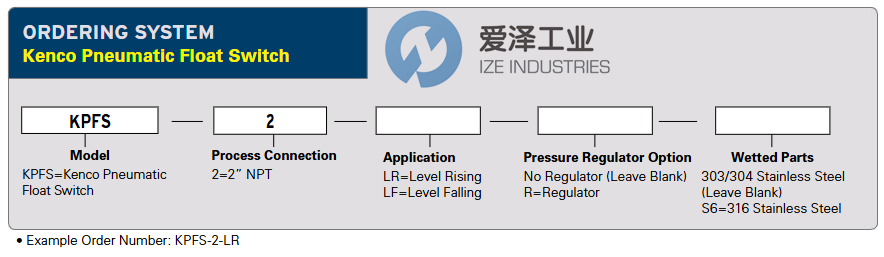

KENCO气动浮球开关KPFS系列选型
KENCO气动浮球开关KPFS系列其他常用型号：
KENCO KPFS-2-LR-R
KENCO KPFS-2-LF
KENCO KPFS-2-LF-R
KENCO KPFS-2-LR-S6
KENCO KPFS-2-LF-S6
KENCO KPFS-2-LR-R-S6
KENCO KPFS-2-LF-R-S6
KENCO KPFS-2-LR
KENCO PNEUMATIC FLOAT SWITCH NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于KENCO气动浮球开关KPFS-2-LR-R的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for KENCO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
KENCO气动浮球开关KPFS系列KPFS-2-LR-R技术参数及介绍
