OLAER蓄能器DA-280-250ABAF1102技术参数

OLAER蓄能器DA系列介绍

DA隔膜蓄能器为压力储能和液压弹簧提供了一种可靠高效的解决方案。利用包括应用数据库和CAD/CAM在内的综合工具和资源，提供优化设计和性能的隔膜蓄能器。（所有液压蓄能器均符合2014/68/EU法规）

DA隔膜蓄能器（也称为膜片蓄能器）是一种气体蓄能器，其液气两相间由柔性隔膜实现。该蓄能器结构紧凑、重量轻，采用两种弹性体材料：丁腈橡胶和Hydrin（适用于低温工作环境），最大压力为350 bar（容积达2.8升），最大容积为3.5升（压力达250 bar）。

DA蓄能器系列配备粘合密封（BS）流体接口，流体接口为内螺纹或外螺纹/内螺纹组合，气体接口为M28x1.5。

蓄能器附件，如安全块、夹具、锁紧螺母、充电组件（VGU），可以帮助在任何液压系统中安全地安装和操作蓄能器。

The DA diaphragm accumulator offers a reliable and efficient solution for storing energy under pressure and as an hydraulic spring. Utilizing comprehensive tools and resources including an applications database, CAD/CAM we offer an optimized design and performance membrane accumulator. (all hydraulic accumulators are compliant to 2014/68/EU regulation)

DA diaphragm accumulators (also referred to as membrane accumulators) are gas-loaded accumulators in which separation between the liquid and gas sides is achieved by a flexible diaphragm. They have a compact and lightweight design are available in 2 elastomer mixes; Nitrile and Hydrin (for low temperature working conditions) with a maximum pressure of 350bar (up to 2,8 liters) and volume of 3.5 Litres (up to 250 Bar).

DA accumulator range comes with a bonded seal (BS) fluid port with female or male and female fluid connection and M28x1,5 gas connection.

Accumulator accessories such as Safety Blocks, Clamps, Lock nut, Charging Sets (VGU), can aid the safe installation and operation of the accumulators in any hydraulic system.

Features/Benefits

• The adaption of a hydraulic shock absorber made up of a diaphragm accumulator improves driver comfort and offers immediate response times when driving over obstacles or rough terrain.

• The DA diaphragm accumulator offers a cost effective solution for hydraulic systems.

• The DA diaphragm accumulators are PED compliant and can be used in over 35 countries.

• The DA diaphragm accumulators offer high compression ratio (up to 8 – according to type)

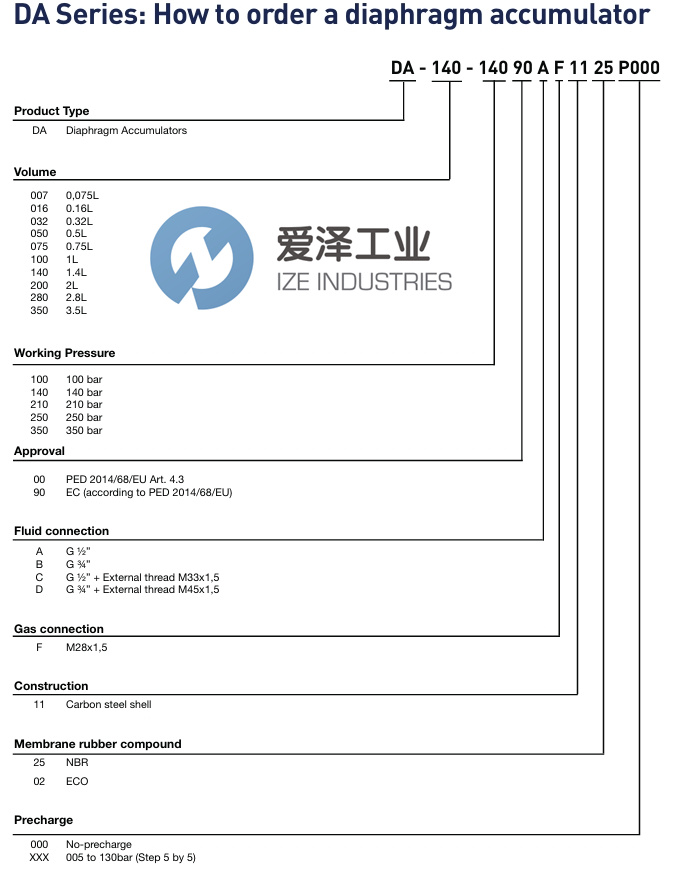

OLAER蓄能器DA系列选型

OLAER蓄能器DA系列其他常用型号：

OLAER DA00725000AF1102000

OLAER DA01625000AF1102000

OLAER DA03221000AF1102000

OLAER DA05021000AF1102000

OLAER DA07521000AF1102000

OLAER DA10021000AF1102000

OLAER DA14014090AF1102000

OLAER DA20025090BF1102000

OLAER DA28025090BF1102000

OLAER DA35025090BF1102000

OLAER DA-075-210ABAF1125

OLAER DA-140-250ABAF1125

OLAER DA-016-250ABAF1125

OLAER DA-280-250ABAF1102
