WALVOIL阀DF25系列技术参数
WORKING CONDITIONS | |
N. of available ways | 3 |
Max. flow rating | 280 l/min (74 US gpm) |
Max. pressure | 315 bar (4600 psi) |
Internal leakage A(B)⇒T | ∆p = 100 bar (1450 psi) 15 cm³/min (0.92 in³/min) |
Fluid | Mineral based oil |
Fluid temperature | with NBR (BUNA-N) seals from -20°C to 80°C (from -4°F to 176°F) |
Viscosity | operating range from 15 to 75 mm²/s (from 15 to 75 cSt) |
Max. level of contamination | 21/19/16 - ISO 4406 - NAS 1638 - class 10 |
Ambient temperature for working conditions | with mechanical controls from -40°C to 60°C (from -40°F to 140°F) |
WALVOIL阀DF25系列介绍
机械控制一体式分流阀
• 三通配置
• 机械杆、凸轮、电液、气动控制
Mechanical control monoblock diverter valve
• 3 ways configuration
• Mechanical lever, cam, electrohydraulic, pneumatic controls

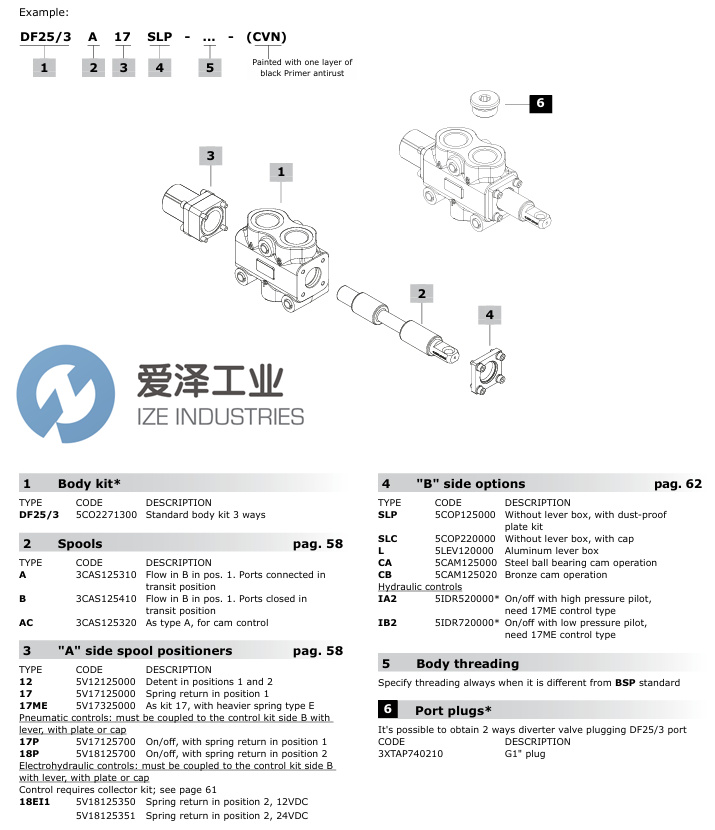

WALVOIL阀DF25系列选型
WALVOIL阀DF25系列其他常用型号：
WALVOIL DF25/3A17MEIA2 W127054380
WALVOIL DF25/3A17IA2
WALVOIL DF25/3A12L
WALVOIL DF25/3A-17L
WALVOIL DF25/3A-17IA2
WALVOIL DF25/3A-17IB2
WALVOIL DF25/3B-17IB2
WALVOIL DF25/3A17MEIB2
WALVOIL DF25/3B12L
WALVOIL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
