OLEOWEB阀VBCF系列技术参数
TECHNICAL DATA | |
Mineral oil | ISO 6743/4 (DIN 51524) |
Oil viscosity | 15-250 mm²/s (15 to 250 cSt) |
Max contamination index | ISO 4406:1999 Classe 19/17/14 |
Oil temperature | -20°C +80°C/-4°F +176°F |
Environment temperature | -20°C +50°C/-4°F +122°F |
It is necessary a filter use to protect the valve (advised filtration 15 μm) | |
OLEOWEB阀VBCF系列介绍
Oleoweb VBCF的设计旨在实现对执行器（例如油缸或液压马达）在增压、重力作用下负载的最佳控制。VBCF过中心阀为双作用控制阀，即对双向流动的负载均有控制；这些阀门可法兰安装，因此可直接应用于执行器，从而有效减少滞后现象。因此，重力负载的稳定是平衡阀的基本功能之一。
为了确保最佳的负载支撑性能，Oleoweb特别注重平衡阀的密封性，采用高强度钢材制造，并经过淬硬和研磨处理，并在组装后仔细检查阀门的尺寸、螺纹和密封性。过中心阀的另一个主要功能是控制执行器的运动。由于采用了先导比，因此可以在低于阀门设定压力的条件下释放负载。
Thebalancing valvesOleoweb VBCF are designed to achieve the best control of the loads in the working conditions that provide boosts, gravity on the actuators, such as cylinders or hydraulic motors. Thevalves overcenterVBCF are double-acting control, that is, the load in both directions of the flow; these are valves flangiabili, apploicabili, therefore, directly on the actuator with a consequent reduction of the phenomenon of hysteresis. The livelihood of a load gravitazinale is therefore one of the fundamental tasks of thebalancing valves.
To ensure the best performance in terms of supporting the load, Oleoweb particular attention to the tightness of its balancing valves, making the components of high-strength steel, hardened and ground, and by carefully checking the size and teolleranze as well as the tightness of the valves once assembled. Another main task of thevalves overcenteris the control of the movement of the actuator. Thanks to the pilot ratio, it is possible to unlock the load at a lower pressure than that of the setting of the valve.

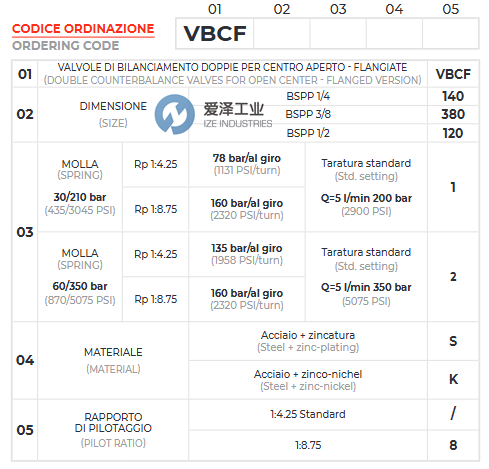

OLEOWEB阀VBCF系列选型

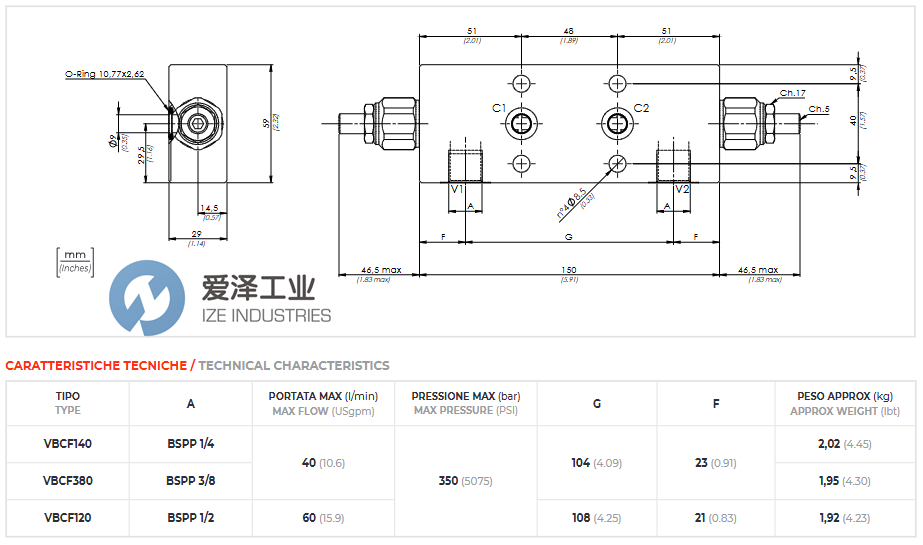

OLEOWEB阀STBF-BSPP系列规格尺寸
OLEOWEB阀VBCF系列其他常用型号：
OLEOWEB VBCF3802S-16R-01
OLEOWEB VBCF140
OLEOWEB VBCF380
OLEOWEB VBCF120
OLEOWEB VBCF-380-2-S-8
OLEOWEB VBCF-120-2-S-8
OLEOWEB VBCF3802S
OLEOWEB VBCF1202S
OLEOWEB VBCF120-2
OLEOWEB valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于OLEOWEB阀VBCF3802S-16R-01的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for OLEOWEB products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
