NORGREN电磁阀SXE9675-A50-00技术参数
Operator Type | SXE = Solenoid pilot operated valve |
Signal Duration | 9 = Continuous |
Internal Variations | 6 = 5-Port/3-position, spring centered, all ports blocked |
Mounting Type | 7 = ISO Star Series |
Size | 5 = Size 3 |
Solenoid Type | A = Standard solenoid pilot operator |
Valve Body Options | 5 = Coils: double solenoid |
Pilot Supply/Integral Air Return Operator | 0 = Internal / integral air return |
Manual Override | 00 = Combination locking/nonlocking |
NORGREN电磁阀SXE系列介绍
采用NITUFF涂层防腐蚀阀芯和阀套，使用寿命长，无故障运行（超过1亿次循环）
size #1和size #2配备集成式流量控制装置，用于控制气缸转速
低功耗电磁阀，带手动超控选项
端部和CNOMO电磁阀先导阀
可选配底座安装式软启动阀
维护量低
NITUFF coated non-corrosive spool and sleeve for long trouble free life (100 million plus cycles)
Integral flow controls for cylinder speed control on size #1, and #2 models
Low power solenoids with manual override options
End and CNOMO solenoid pilots
Base mounted soft start valves available
Minimal maintenance

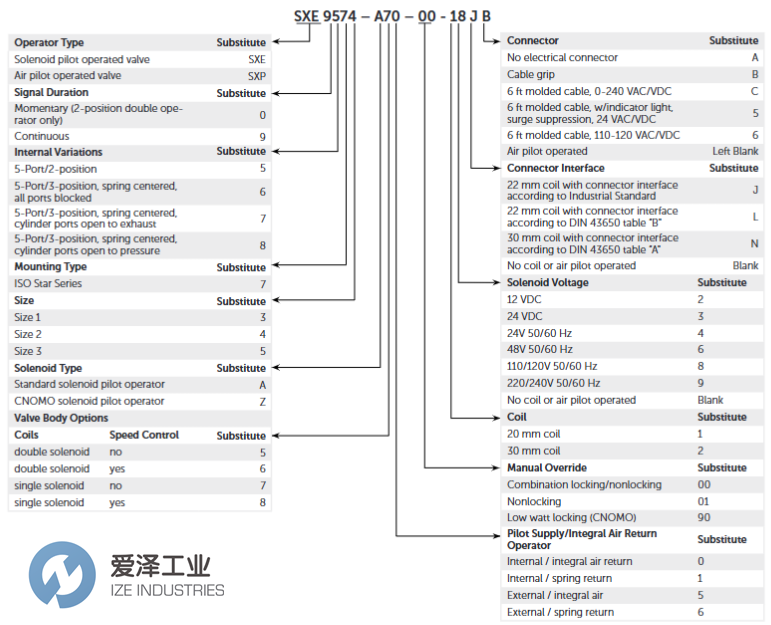

NORGREN电磁阀SXE系列选型
NORGREN电磁阀SXE系列其他常用型号：
NORGREN SXE9675-A50-00
NORGREN SXE9673-A60-00
NORGREN SXE9674-A60-00
NORGREN SXE9673-A65-00
NORGREN SXE9674-A65-00
NORGREN SXE9675-A55-00
NORGREN SXE9773-A60-00
NORGREN SXE9774-A60-00
NORGREN SXE9775-A50-00
NORGREN SXE9773-A65-00
NORGREN SXE9774-A65-00
NORGREN solenoid valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于NORGREN电磁阀SXE9675-A50-00的疑问，请随时致电我们，爱泽工业（021-31006702）。我们将尽全力解决您的问题。
If you have any question for NORGREN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
NORGREN电磁阀ISO Star系列SXE9675-A50-00技术参数及选型
