REXROTH阀M-3SEW6U3X/420MG24N9K4/V R900570174技术参数
Product attributes | |
Connection diagram | ISO 4401-03-02-0-05 |
Product family | M-.SEW6 |
Operating pressure, max. [bar] | 420.0 |
Max. flow [l/min] | 25.0 |
Spool symbol | Symbol U |
Type of connection | Subplate mounting |
Size | 6 |
Type of actuation | with solenoid actuation |
Valve ports number | 3 |
Valve position number | 2 |
Supply voltage | 24 VDC |
Electrical connector | Connector, 3-pole (2 + PE) |
Electric connection description | Connector, 3-pole (2 + PE) according to EN 175301-803 |
Hydraulic fluid | HEES |
Seals | FKM |
Weight [kg] | 1.49 |
REXROTH阀M-.SEW6系列介绍
方向控制阀，直动式，电磁驱动
特性
▪ 2/2、3/2 或 4/2 方向设计
▪ 符合 DIN 24340 A 型标准的端口布局
▪ 符合 ISO 4401-03-02-0-05 和 NFPA T3.5.1 R2-2002 D03 标准的端口布局
▪ 带可拆卸线圈的气隙直流电磁阀
▪ 电磁阀线圈可旋转 90°
▪ 无需打开密封腔即可更换线圈
▪ 独立电气连接
▪ 可选配手动超控装置
▪ 电感式位置开关和接近传感器（非接触式）
Directional seat valves, direct operated, with solenoid actuation
Features
▪ 2/2, 3/2 or 4/2 directional design
▪ Porting pattern according to DIN 24340 form A
▪ Porting pattern according to ISO 4401-03-02-0-05 and NFPA T3.5.1 R2-2002 D03
▪ Air-gap DC solenoids with detachable coil
▪ Solenoid coil can be rotated by 90°
▪ The coil can be changed without having to open the pressure-tight chamber
▪ Electrical connection as individual connection
▪ Manual override, optional
▪ Inductive position switch and proximity sensors (contactless)

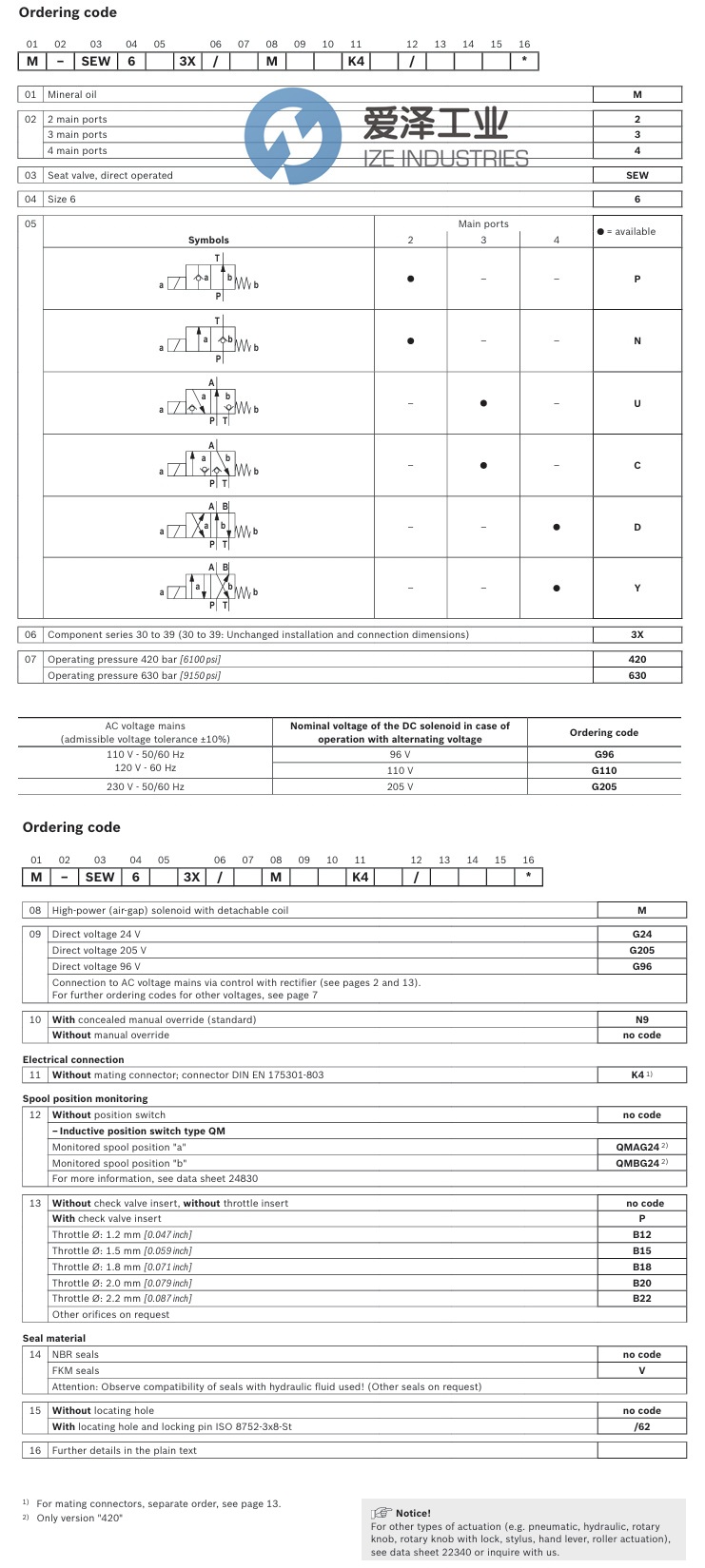

REXROTH阀M-.SEW6系列选型
REXROTH阀M-.SEW6系列其他常用型号：
REXROTH M-3SEW6C3X/420MG24N9K4 R900566273
REXROTH M-3SEW6C3X/630MG24N9K4 R900566279
REXROTH M-3SEW6U3X/420MG24N9K4 R900566283
REXROTH M-3SEW6U3X/420MG96N9K4 R900570744
REXROTH M-3SEW6U3X/630MG24N9K4 R900566289
REXROTH M-4SEW6D3X/420MG24N9K4 R900566293
REXROTH M-2SEW6N3X/420MG110N9K4 R900210128
REXROTH M-2SEW6N3X/420MG110N9K4/B20 R901198878
REXROTH M-2SEW6N3X/420MG110N9K4/P R901040368
REXROTH M-2SEW6N3X/420MG110N9K4/V R900209996
REXROTH M-2SEW6N3X/420MG125N9K4/V R900989616
REXROTH M-2SEW6N3X/420MG205K4 R901017071
REXROTH M-2SEW6N3X/420MG205N9K4 R900210963
REXROTH M-2SEW6N3X/420MG205N9K4/B12V R900203766
REXROTH M-2SEW6N3X/420MG205N9K4/B15 R900230768
REXROTH M-3SEW6U3X/420MG24N9K4/V R900570174
