MINDMAN阀MVSY-100系列技术参数
Specification | |||
Model | 4E1 | 4E2 | 4E2 C.P.R |
Bore No. | M5 | ||
Port size | M5×0.8 | ||
No. of port | 5 | ||
No. of position | 2 | 3 | |
Medium | Air | ||
Operating perssure range | 0.2~0.7 Mpa | ||
Operating perssure (LP) | 0.0~0.7 Mpa | ||
Pilot pressure range (LP) | 0.25~0.7 Mpa | ||
Proof pressure | 1 Mpa | ||
Effective orifice | Body ported: 4.5 mm2 | ||
Manifold: 4.5 mm2 | Manifold: 4.5 / 5 / 4.5 mm2 | ||
Reponse time | 15 ms | ||
Ambient temperature | +5~+50°C | ||
Max. operating frequency | 5 Hz | ||
Voltage | AC110V, 220V (50/60)Hz, DC24/12/6V | ||
Power consumption | AC= 1.6/2.5VA, DC6= 1.2W, DC12/24= 0.55W | ||
Available voltage range | ±10% | ||
Insulation class | B class | ||
Weight (g) | Valve: 30 | Valve: 44 | Valve: 59 |
Manifold: 5B: 14n+42, 5M: 46n+87 (n: Stations) | |||
MINDMAN阀MVSY-100系列介绍
本体宽度：10 mm，端口尺寸：M5 x 0.8，工作压力范围：0.2~0.7 MPa，耐压：1 MPa，流量：218 l/min。
Body width:10 mm, Port size: M5 x 0.8, Operating pressure range: 0.2~0.7 MPa, Proof pressure: 1 MPa, Flow : 218 l/min.

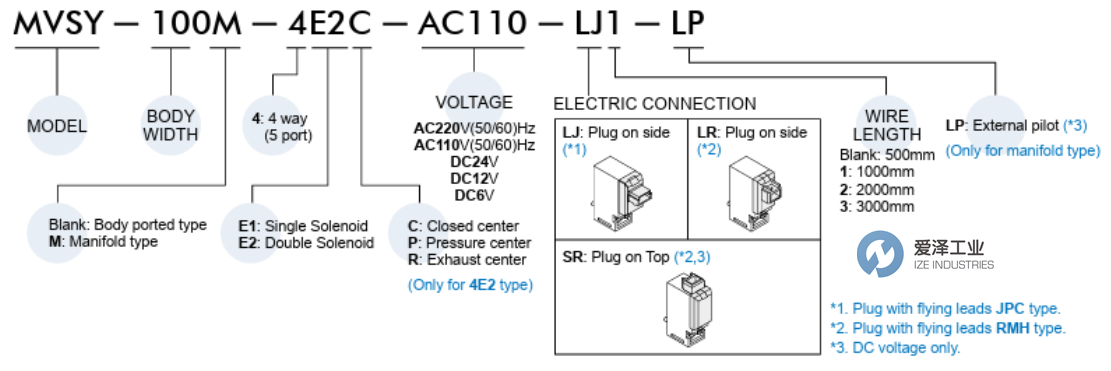

MINDMAN阀MVSY-100系列选型
MINDMAN阀MVSY-100系列其他常用型号：
MINDMAN MVSY-100-4E1-DC24-LR
MINDMAN MVSY-100-4E2C-AC220-LJ
MINDMAN MVSY-100-4E1-DC24V
MINDMAN MVSY-100-4E1C-AC110-LR
MINDMAN MVSY-100-4E1C-AC110-LJ
MINDMAN MVSY-100-4E1C-AC110-SR
MINDMAN MVSY-100-4E1C-AC220-LJ
MINDMAN MVSY-100-4E1C-AC220-LR
MINDMAN MVSY-100-4E1C-AC220-SR
MINDMAN MVSY-100-4E1C-DC12-LJ
MINDMAN MVSY-100-4E1C-DC12-LR
MINDMAN MVSY-100-4E1C-DC12-SR
MINDMAN MVSY-100-4E1C-DC24-LJ
MINDMAN MVSY-100-4E1C-DC24-LR
MINDMAN MVSY-100-4E1C-DC24-SR
MINDMAN MVSY-100-4E1C-DC6-LR
MINDMAN MVSY-100-4E1C-DC6-SR
MINDMAN MVSY-100-4E1P-AC110-LJ
MINDMAN MVSY-100-4E1P-AC110-LR
MINDMAN MVSY-100-4E1P-AC110-SR
MINDMAN valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于MINDMAN阀MVSY-100-4E1-DC24-LR的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for MINDMAN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
MINDMAN阀MVSY-100系列MVSY-100-4E1-DC24-LR技术参数及介绍
