MECAIR控制器IS/ISP系列技术参数
TECHNICAL CHARACTERISTICS & PERFORMANCE | |
dP Support | 0 to 4.5 kPa |
Input Voltage | AC: 100–240 V ±10% @ 50/60 Hz |
Output Voltage | AC: 100–240 V ±10% @ 50/60 Hz (same as input) |
Maximum Input Power | AC OUT models: 255 W |
Connection Option | Units may be connected from a 3A rated MCB or ELCB protected branch circuit. |
Discrete Solenoid Outputs | 12, 20 or 40 outputs |
ON & OFF Time | ON: 30 ms to 990 ms, OFF: 1 s to 999 s |
Inputs | Voltage Free: Fan Stop, Low Header |
Outputs | Voltage Free: Coil Error. |
Humidity | 20%–85% non-condensing. |
Maximum Altitude | 2000 m |
Pollution Degree | For UL applications, product is suitable for pollution degree 2. |
MECAIR控制器IS/ISP系列介绍
IS/ISP顺序控制器集成了控制系统，专为大型反向脉冲喷射过滤器清洗系统而设计。IS和ISP的设计使其能够在各种环境条件下运行，适用于所有类型的过滤器，包括滤袋、滤芯、烧结金属过滤器或陶瓷过滤器。
IS 顺序控制器以连续模式运行，而ISP内置差压传感器，可按需驱动。IS和ISP可单独订购，也可订购带外壳（聚碳酸酯材质）的套装。
The IS/ISP Sequencer features integrated controls intended for use with larger reverse pulse jet filter cleaning systems. The IS & ISP have been designed to operate across a wide range of environmental conditions. It is suitable for use with all types of filters, including bags, cartridges, sintered metal or ceramic filters.
The IS sequencer operates in continuous mode, whereas the ISP has a built-in differential pressure sensor, allowing this sequencer to be demand driven. IS & ISP may be ordered as the sequencer only or in an enclosure (polycarbonate).

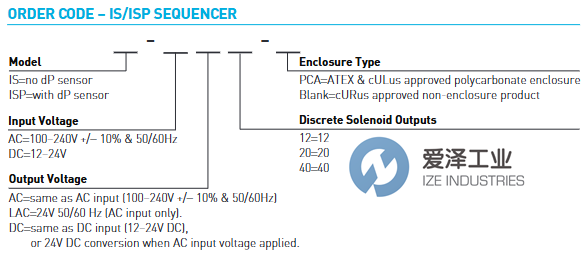

MECAIR控制器IS/ISP系列选型：
MECAIR控制器IS/ISP系列其他常用型号：
MECAIR IS-ACAC20-PCA
MECAIR IS-ACDC12-PCA
MECAIR IS-ACAC12
MECAIR IS-ACAC12-PCA
MECAIR IS-ACAC20
MECAIR IS-ACAC40
MECAIR IS-ACAC40-PCA
MECAIR IS-ACDC12
MECAIR IS-ACDC12-PCA
MECAIR IS-ACDC20
MECAIR IS-ACDC20-PCA
MECAIR IS-ACDC40
MECAIR IS-ACDC40-PCA
MECAIR ISP-ACDC20-PCA
MECAIR ISP-ACAC12
MECAIR ISP-ACDC12-PCA
MECAIR ISP-ACDC20
MECAIR ISP-ACDC40
MECAIR controller NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于MECAIR控制器IS-ACAC20-PCA的疑问，请随时致电我们，爱泽工业（021-31006702）。我们将尽全力解决您的问题。
If you have any question for MECAIR products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
