SIEMENS阀门定位器760E11AAAG12D6技术参数
Series | 760 |
Input signal | E1 = 4 to 20 mAdc (not available with High Temp. Option) |
Action (Rising Stem/Linear or Rotary) | 1 = 1/2 to 4 inch stroke lever with set of (3) 60° cams |
Enclosure Type 4X/IP65 (with 3/4 inch NPT Conduit Connection) | A = Standard |
Flow Capacity | A = Standard Capacity Spool Valve Assembly (Cv = 0.3) |
Environmental Construction Options | A = Standard Temperature (-40°F to +185°F) (-40°C to +85°C) |
Gauges (Not available with Hi Temp. Environmental Construction “C” | G = Gauges (set of three gauges) |
Limit Switches (Not avail. with Hi Temp Environmental Construction “C” | 1 = Mechanical Switches, (2) SPDT |
Feedback Devices (Not avail. with Hi Temp Environmental Construction “C”) | 2 = 4 to 20 mAdc Feedback |
Design Level | D = Revision |
Electrical Approval | 6 = FM / CSA / ATEX / CE |
SIEMENS阀门定位器760系列介绍
760系列阀门定位器为阀门控制提供了一种经济高效的通用解决方案。其模块化设计使得所有型号均可基于基础气动单元（760P 型）构建。电控气动型号（760E 型）是通过在基础气动单元上添加 I/P传感器而制成的，并且各种附件可轻松安装在单元内部。
760基础气动单元无需额外部件即可实现凸轮特性、分量程、正反作用以及单作用或双作用。其关键设计特点包括零点和量程调整互不干扰。
760系列阀门定位器预留了内部限位开关和位置反馈装置的安装位置，无需额外的壳体。因此，避免了堆叠壳体而妨碍主外壳检修的问题。
滑阀用于根据输入信号加载执行器，从而实现定位。特性凸轮提供机械反馈。凸轮轮廓有线性、等百分比和快速开启三种类型，此外还提供空白轮廓凸轮，以满足定制应用的需求。直线运动长度范围为 1/2 英寸至 6 英寸。
反馈轴和特性凸轮可在现场更换，以便将定位器配置为与直线或旋转执行器配合使用。无需额外部件即可在单作用或双作用执行器之间切换，或切换正向或反向运动。
The Series 760 Valve Positioners provide a cost effective universal approach to your valve control. Their modular concept allows all models to be built on the base pneumatic unit (Model 760P). The electro-pneumatic model (Model 760E) is created by adding an I/P transducer to the base pneumatic unit, and a wide range of accessories easily in stalls inside the unit.
The 760 base pneumatic unit provides cam characterization, split ranging, direct or reverse action, and single or double acting without requiring additional parts. Key design features include non-interaction of the zero and span adjustments.
Series 760 Valve Positioners include provisions for internal limit switch mounting and position feedback devices without requiring additional housings. Thus, the need to stack housings that impede access to the main enclosure are eliminated
A spool valve is used to load the actuator for positioning in response to an input signal. A characterized cam provides mechanical feedback. There are linear, equal percentage and quick opening operation cam profiles, and a blank profile cam is available for custom applications. Rectilinear action length
can range from 1/2 inch to 6 inches.
The feedback shaft and characterized cam can be replaced in the field to configure the positioner for use with either a rectilinear or rotary actuator. No additional parts are necessary to change between single or double acting actuators or direct or reverse action

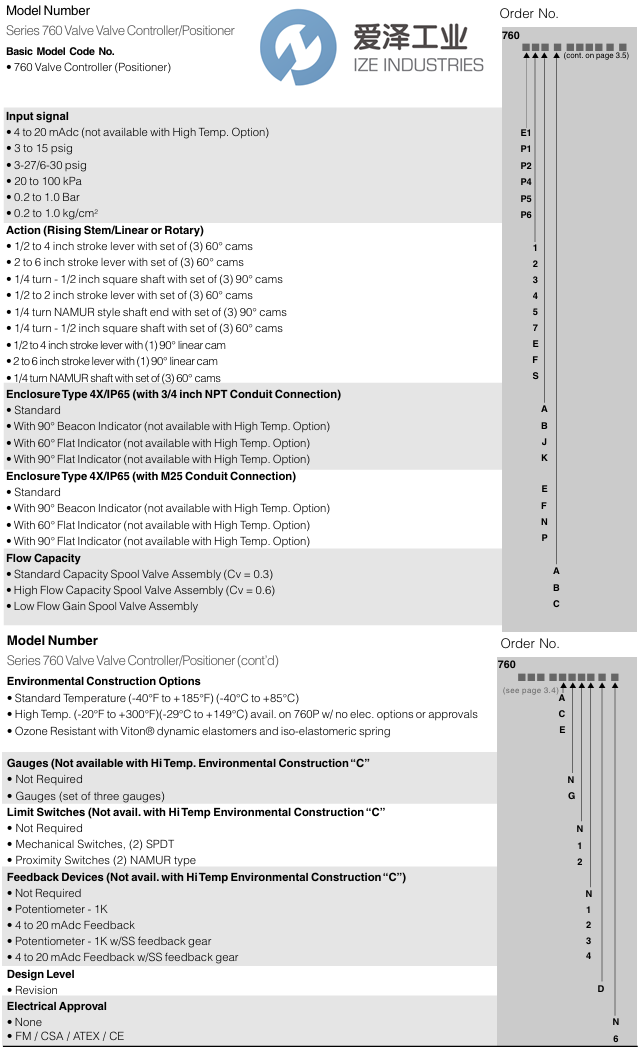

SIEMENS阀门定位器760系列选型
SIEMENS阀门定位器760系列其他常用型号：
SIEMENS 760E11AAAG12D6
SIEMENS 760E15BCANN2D6
SIEMENS 760E15BCAGN4D6
SIEMENS 760E15BCAGN2D6
SIEMENS 760E15BCAG14D6
SIEMENS 760E15BBAN12D6
SIEMENS 760E15BBAGN4D6
SIEMENS 760E15BBAGN2D6
SIEMENS 760E15BBAG12D6
SIEMENS 760E15BAANN2D6
SIEMENS 760E15BAAGN4D6
SIEMENS 760E15BAAGN2D6
SIEMENS 760E15BAAG14D6
SIEMENS 760E15BAAG11D6
SIEMENS 760E15ACANN2D6
SIEMENS 760E15ACAGN4D6
SIEMENS 760E15EBAGN2D6
SIEMENS 760E15ABAGN4D6
SIEMENS 760E17JBAG12D6
SIEMENS 760E1EAAANN2D6
