STERIDOSE混合器SMMS85技术参数
 | Technical data | |
Model | SMMS 85 | |
Max Working Volume | 2000 L | |
Max RPM (assume waterlike media) | 1200 | |
Tip speed at max RPM | 5.6 m/s (18.4 ft/s) | |
Torque coupling | 2.6 Nm (23 in-lb) | |
Transferred power at max RPM | 0.33 kW (0.44 HP) | |
Motor Size | 0.55 kW (3/4 HP) | |

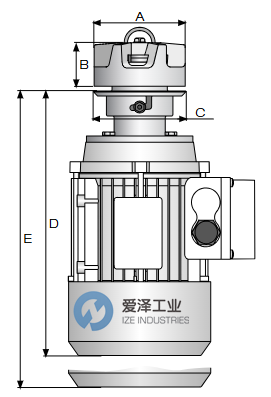

Dimension A: Impeller diameter | 89 mm (3.5”) | |
Dimension B: Impeller height | 42 mm (1.7”) | |
Dimension C: Weld plate diameter | 90 mm (3.5”) | |
Dimension D: Weld plate - bottom of drive unit | 259 mm (10.2”) | |
Dimension E: Minimum distance to remove drive unit | 301 mm (11.9”) |
STERIDOSE混合器SMMS系列介绍
中剪切混合器（型号 SMMS）基于Sterimixer®久经考验的设计，是向溶液中掺入轻质或疏水性固体（例如酵母）的理想之选。该新型号的特色包括：采用无减速齿轮的直联式电机，以及可互换的叶轮——该叶轮可适配标准低剪切 Sterimixer所使用的同一焊接底板及阳轴承组件。
SMMS混合机的叶轮采用开放式设计，使其适用于CIP/SIP应用；在清洗过程中，无需将混合机完全浸没于液体中。
新款SMMS混合机既可用于固体物料的掺混，亦可用于常规混合操作，从而实现了一机兼具两种混合机功能的效用。
一旦固体物料完全溶解并掺入溶液中（此时混合机通常以较高的转速运行），即可适当降低混合机的转速；即便在低速运行下，它依然能产生足够的泵送流场，从而确保溶液保持均一性。
SMMS混合机的设计严格遵循现行ASME BPE标准的设计准则。
所有与工艺流体接触的部件均具备可追溯性，并符合各项相关的行业规范要求，例如USP <87> 和 <88> VI级标准。
The medium shear mixer (model SMMS), based on the well proven design of Sterimixer®, is ideal for incorporation of light or hydrophobic solids into solutions (e.g. yeast). Features of the new model include a direct coupled motor without gear reducer and an interchangeable impeller that fits in the same weld-plate and male bearing of the standard low shear Sterimixer.
The open design of the impeller allows the SMMS mixer to be used in CIP/SIP applications without the need of being submerged during the cleaning process.
The new SMMS can be used for solid incorporation and general blending, therefore performing the duty of two mixers in one.
Once the solids are incorporated into solution (where the mixer would be running at higher rpm), the mixer can be slowed down and would still create sufficient pumping to keep homogeneity.
The design of the SMMS mixer follows the design guidelines of the current ASME BPE Standard.
Process contact components are traceable and in conformance with relevant industry requirements, such as USP <87> and <88> Class VI.
STERIDOSE混合器SMMS系列其他常用型号：
STERIDOSE SMMS85TC
STERIDOSE SMMS120TC
STERIDOSE SMMS85
STERIDOSE SMMS120
STERIDOSE mixer NEW + ORIGINAL+ ONE YEAR WARRANTY
