JOHNSON FLUITEN旋转接头R025020626技术参数
| |

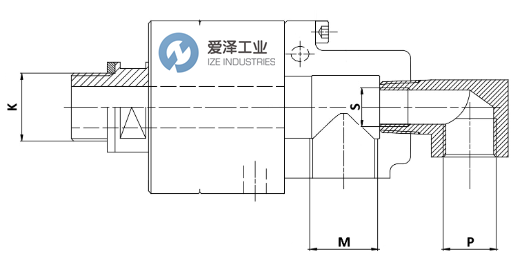

Type | Dual Channel |
Rotor K (filter) | G 1" LH (ISO 228-1) |
Imported M | G 1″ RH (ISO 228-1) |
Maximum rotational speed | 2300 |
seal | B3 |
body fluid | Water, air, hydraulic oil, ethylene glycol, coolant |
Joint size | 1" |
Export P | G 1/2" RH (ISO 228-1) |
Syphon S | 16 mm |
Joint S type | Rotation |
pressure | 50 |
weight | 2.400 kg |
Temperature (minutes) | -19°C |
Temperature (highest) | 120°C |
JOHNSON FLUITEN旋转接头R系列介绍
特殊设计的带有B3密封件的R系列旋转接头应用广泛。密封材料是石墨对碳化硅。R型接头非常适合水、液压油、空气和乙二醇介质。密封件经过微研磨以获得最佳密封性能。R型活接头的尺寸规格从9毫米到150毫米不等，有单通道、双通道、螺纹连接和法兰连接不同选项。优质材料、加工精度和装配过程中对细节的关注使R型旋转接头成为各种应用的理想之选。所有接头都经过压力测试。R接头的最高工作温度为120°C。更换维修包时无需从机器上拆下旋转接头即可轻松操作，从而减少停机时间，提高生产效率。
The specially designed R-series rotary joints with B3 seals have a wide range of applications. The sealing material is graphite-silicon carbide. R-type joints are ideal for water, hydraulic oil, air, and ethylene glycol media. The seals are micro-ground for optimal sealing performance. R-type joints are available in sizes from 9 mm to 150 mm, with single-channel, double-channel, threaded, and flanged options. High-quality materials, precision machining, and attention to detail during assembly make R-type rotary joints ideal for a variety of applications. All joints are pressure-tested. The maximum operating temperature of R-type joints is 120 °C. Changing service kits allows for easy operation without removing the rotary joint from the machine, reducing downtime and increasing productivity.

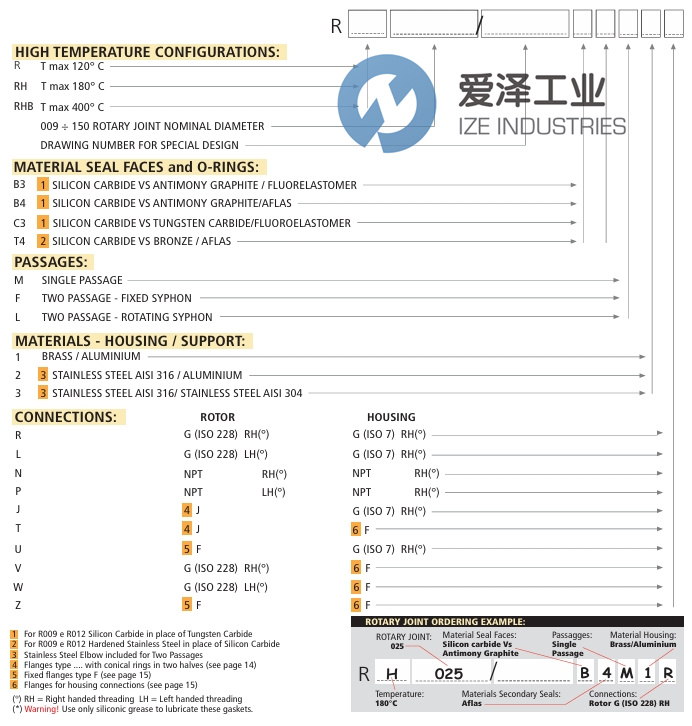

JOHNSON FLUITEN旋转接头R系列选型
JOHNSON FLUITEN旋转接头R系列其他常用型号：
JOHNSON FLUITEN R025020626
JOHNSON FLUITEN R009002641
JOHNSON FLUITEN R009020550
JOHNSON FLUITEN R009020621
JOHNSON FLUITEN R009006594
JOHNSON FLUITEN R009020610
JOHNSON FLUITEN R009020622
JOHNSON FLUITEN R012001963
JOHNSON FLUITEN R012002296
JOHNSON FLUITEN R012019858
JOHNSON FLUITEN R012004960
JOHNSON FLUITEN R012002295
JOHNSON FLUITEN R012020623
JOHNSON FLUITEN R019003061
JOHNSON FLUITEN rotary joint NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于JOHNSON FLUITEN旋转接头R025020626的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for JOHNSON FLUITEN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
