REMKE连接器插头MICRO-LINK系列技术参数
MATERIALS | |
Body | PVC |
O-Ring | Nitrile Rubber |
Contact | Brass, Gold Plated over Nickel |
Coupling Nut | Machined Aluminum, Clear Anodized |
Cable | #22 AWG PVC 26 x #36 Stranding, 105°C or #18 AWG PVC 41 x #34 Stranding,105°C, UL Recognized, CSA Certified |
Cable Diameters | #22 AWG PVC without braid, 2/C -.17", 3/C -.18", 4/C- .19", 5/C-.21", 6/C-.22" |
#22 AWG PVC with braid, 2/C-.23", 3/C-.23", 4/C-.25", 5/C-.26", 6/C-.29" (braid not electrically connected) | |
#18 AWG PVC, 2/C-.29", 3/C-.29", 4/C-.29", 5/C-.29" | |
ELECTRICAL | |
Voltage Rating | 250 VAC/300 VDC |
Current | #22 AWG - 2 to 5 Pole-4A, 6 Pole-3A, #18 AWG-5A |
Contact Resistance | ≤5mΩ |
ENVIRONMENTAL | |
Protection | IP67 |
Operating Temp | PVC: -20°C to 105°C |
REMKE连接器插头MICRO-LINK系列介绍
Remke Micro-Link 系列的所有模制连接器均采用 PVC、PUR、TPE 和橡胶材质，可有效应对恶劣环境以及各种温度和环境因素。该系列模制连接器和线缆组件提供公头和母头、2至6极、直插式或 90°弯头配置，以及单键槽、双键槽或以太网接口设计。此外，还可根据客户需求提供可选的 LED 指示灯和带/不带编织层的线缆。
All molded connectors in the Remke Micro-Link family are available in PVC, PUR, TPE and Rubber to protect against harsh conditions as well as numerous environmental & temperature concerns. This family of molded connectors & cordsets are available in male & female, 2 thru 6 pole, straight or 90º configurations and single - dual keyway - or ethernet-enabled design. Optional LED’s and cable with or without braiding are also available upon request.
REMKE连接器插头203A0060T1介绍
双键微型连接器插头组件，PVC材质，母头，3极，6英尺，22 AWG，不锈钢耦合器
Dual Key Micro-Link Plug Assembly, PVC, Female, 3 pole, 6′, 22 AWG, SS coupler

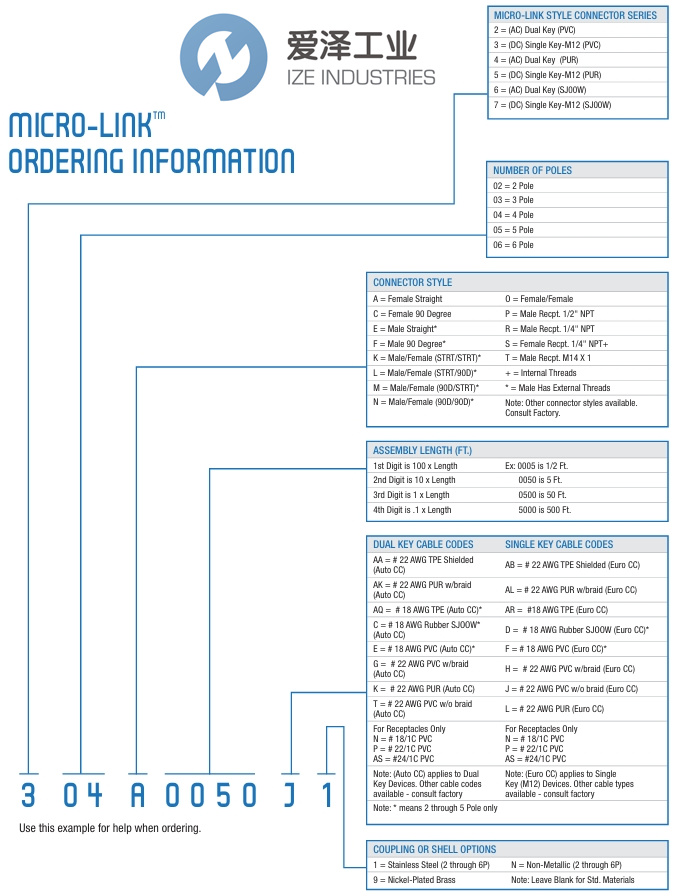

REMKE连接器插头MICRO-LINK系列选型
REMKE连接器插头MICRO-LINK系列其他常用型号：
REMKE 203A0060T1
REMKE 202E0060T
REMKE 202E0120T
REMKE 202E0200T
REMKE 203E0060T
REMKE 203E0120T
REMKE 202A0060T
REMKE 202A0120T
REMKE 202A0200T
REMKE 203A0120T
REMKE 204A0060T
REMKE 204A0200T
REMKE 205A0060T
REMKE 205A0120T
REMKE 205A0200T
REMKE 206A0060T
REMKE 206A0120T
REMKE 206A0200T
REMKE Connector plug NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REMKE连接器插头203A0060T1的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REMKE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
