PARKER阀D41FPB61FA5NS00技术参数
Technical Specifications | |
Signal Input | 4-20 mA |
Pilot Inlet / Drain Locations | External/internal |
Seal Material | NBR |
Pressure Differential | 5 bar |
Maximum Flow Rate | 600 L/MIN |
Connection Type | 6+PE |
Spool Type | Zerolap |
Defined Spool Position At Power Down | P-A/B-T |
Flow Direction | 12-20 mA = P-A |
Flow Rate | 200 L/MIN |
Spool Code | B61 |
Valve Option | Standard and regenerative valve function |
Port Connection | NG16 / CETOP 07 |
Product Series | Proportional DC Valve |
Port Connection | NG10 / CETOP 05, NG16 / CETOP 07, NG25 / CETOP 08, NG32 / CETOP 10 |
Operation Type | Pilot |
Electronics Type | Onboard |
Maximum Flow Rate | 600 L/min |
Mounting Position | Preferably Horizontal |
Flow Rate | 200 L/min |
Pressure Differential | 5.0 bar |
Mounting Type | Subplate |
Actuation Type | VCD®-actuator |
For Fluid Type | Hydraulic Oil according to DIN 51524 ... 535 |
Function | Proportional, 3-Way |
Maximum Operating Pressure | 350 bar |
Maximum Ambient Temperature | 60 °C |
Minimum Ambient Temperature | -20 °C |
Maximum Fluid Temperature | 60 °C |
Minimum Fluid Temperature | -20 °C, -25 °C |
Maximum Kinematic Viscosity | 400 cSt |
Minimum Kinematic Viscosity | 20 cSt |
Filter Efficiency Rating | ISO 4406 18/16/13 |
Leak Rate | Depending on Spool |
Seal Material | NBR |
Mounting Style | DIN 24340, ISO 4401, CETOP RP121, NFPA |
Response Time | 13 ms |
Hysteresis | < 0.1 % |
Ingress Protection Rating | IP65 in accordance with EN 60529 |
Power Supply Voltage | 24 V Nominal (tolerance range 22 … 30), Electric Shut-off at < 19 V Nominal (tolerance range 22 … 30), Ripple < 5 V % Eff., Surge Free V % Eff. |
Vibration Resistance | 10 Sinus 5...2000 Hz Acc. IEC 60068-2-6, 10 (RMS) Random Noise 20...2000 Hz Acc. IEC 60068-2-64, 15 Shock Acc. IEC 60068-2-27 |
Body Material | Cast Iron |
Weight | 14.2 kg |
Application | Industrial Hydraulic |
Brand | Parker |
Technology | Hydraulics |
Division | Industrial Systems Division Europe |
Valve Type | Proportional DC Valve |
Media | Hydraulic Oil |
Maximum Pilot Pressure | 350 bar |
Minimum Pilot Pressure | 20 bar |
Variation of Opening Point | set to 10 % command signal |
PARKER阀D*1FP系列介绍
D*1FP系列顶级先导式伺服比例阀是液压轴定位精度以及压力和速度控制的理想之选。它兼具极高的动态性能和流量。D*1FP系列将派克专利音圈驱动（VCD®）的优势应用于更大尺寸的阀体，从而实现更高的流量。先导阀的高动态/高精度驱动可实现对主阀芯的最佳控制，从而使整个阀体达到伺服级性能。
D*1FP系列阀门提供5种尺寸：
• D31FP NG10 (CETOP 05)
• D41FP NG16 (CETOP 07)
• D91FP NG25 (CETOP 08)，适用于最大32 mm的端口直径
• D111FP NG32 (CETOP 10)
The top-level series of pilot operated servo proportional valves D*1FP is the ultimate choice for highest accuracy in positioning of hydraulic axis and controlling of pressure and velocity. It shows extremly high dynamics combined with high flow. It The D*1FP series transfers the advantages of the Parker patented Voice Coil Drive (VCD®) to larger frame sizes and thus high flow rates. The high dynamics/ high precision drive of the pilot valve allows the optimum control of the main spool and results in servo class performance of the complete valves.
The D*1FP series is available in 5 sizes:
• D31FP NG10 (CETOP 05)
• D41FP NG16 (CETOP 07)
• D91FP NG25 (CETOP 08) for port diameter up to 32 mm
• D111FP NG32 (CETOP 10)

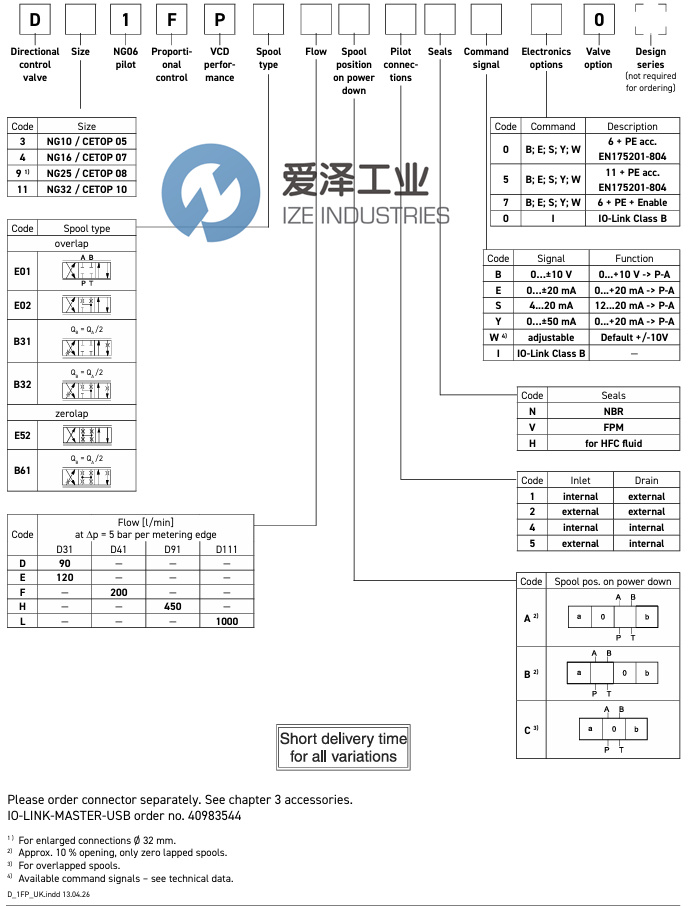

PARKER阀D*1FP系列选型
PARKER阀D*1FP系列其他常用型号：
PARKER D41FPE52FC2NS00
PARKER D41FPE52FB4NB00
PARKER D41FPE52FB4NK00
PARKER D41FPE52FB4NK70
PARKER D41FPE52FB4VK00
PARKER D41FPE52FB4VK50
PARKER D41FPE52FB5NB00
PARKER D41FPE52FB5NK00
PARKER D41FPE01FC2NS50
PARKER D41FPE01FC2VK70
PARKER D41FPE01FC4NB00
PARKER D41FPE01FC4NB50
PARKER D41FPE01FC4NE00
PARKER D41FPE01FC4NB70
PARKER D41FPB61FA5NS00
PARKER valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于PARKER阀D41FPB61FA5NS00的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for PARKER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
