TESCOM减压阀44-1100系列技术参数
OPERATING PARAMETERS | |
Maximum Inlet Pressure | Stainless Steel: 10,000 psig / 690 bar |
Outlet Pressure Ranges | 0-500, 0-800, 10-1500, 15-2500, 25-4000, 50-6000 psig |
Design Proof Pressure | 150% maximum rated inlet |
Leakage | Bubble-tight |
Operating Temperature | -30°F to 140°F / -34°C to 60°C |
Flow Capacity | Cv = 0.06 |
Maximum Operating Torque | 35 in-lbs / 3.95 N•m |
MEDIA CONTACT MATERIALS | |
Body | Brass, 303 Stainless Steel, or 316 Stainless Steel |
Filter | Brass Body: 40 micron (no minal) - Bronze |
Main Valve Seat | Polyimide (Vespel®) |
Vent Valve Seat | PCTFE |
O-Rings | Nitrile, Buna-N |
Back-up Rings | PTFE |
Remaining Parts | 300 Series Stainless Steel |
OTHER | |
Cleaning | CGA 4.1 and ASTM G93 |
Weight | 4.8 lbs / 2.2 kg |
TESCOM减压阀44-1100系列介绍
44-1100 系列高压低流量泄压调节器采用活塞式传感设计，控制压力范围为 0 - 6,000 psig / 0- 414 bar，具有低扭矩调节和大型手柄。提供多种压力范围套件。
应用
• 地面支援设备 (GSE)
• 压力控制面板
• 飞机充气车
• 研发实验室
• 校准设备
特点和优势
• 可拆卸阀组件模块，方便维修
• 在宽压力范围内具有出色的灵敏度
• 活塞式传感器提供更高的安全性和可靠性
• 非平衡阀杆有助于实现可靠的截止功能
• 标准配置进出口压力表接口
• 标准配置泄压功能
• 调节器可在所有压力范围内将压力降至零 psig/bar
• 提供多种定制选项
TESCOM 44-1100 Series high pressure, low flow venting regulator offers a piston sensed design,control pressures of 0 - 6,000 psig / 0- 414 bar,a low torque setting and large handknob. Multiple pressure range kits are available.
Applications
• Ground Support Equipment (GSE)
• Support pressure panels
• Aircraft charging carts
• R & D laboratories
• Calibration equipment
Features and Benefits
• Removable valve assembly module permits easy repair
• Excellent sensitivity through a wide range of pressure settings
• Piston style sensor offers extra safety and reliability
• Unbalanced stem assists positive shutoff
• Inlet and outlet gauge ports are standard
• Venting is standard
• Regulator vents to zero psig / bar in all pressure ranges
• Numerous modifications are available

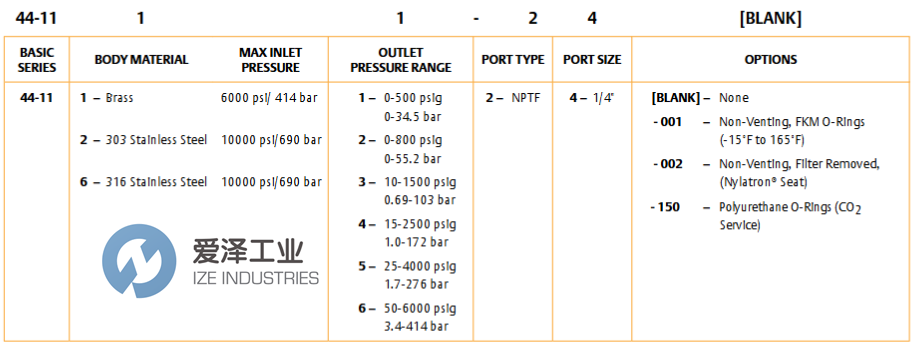

TESCOM减压阀44-1100系列选型
TESCOM减压阀44-1100系列其他常用型号：
TESCOM 44-1124-24
TESCOM 44-1114-24
TESCOM 44-1115-24
TESCOM 44-1116-24
TESCOM 44-1125-24
TESCOM 44-1126-24
TESCOM 44-1165-24
TESCOM 44-1111-24
TESCOM 44-1113-24
TESCOM 44-1112-24
TESCOM 44-1121-24
TESCOM 44-1123-24
