TESCOM减压阀44-1300系列技术参数
OPERATING PARAMETERS | |
Maximum Inlet Pressure | Stainless Steel Body: 4500 psig / 310 bar; 6000 psig / 414 bar available |
Outlet Pressure Ranges | 0-300, 0-600, 0-1000 and 0-1500 psig |
Design Proof Pressure | 150% of rated pressure |
Leakage | Bubble-tight |
Operating Temperature | -15°F to 220°F / -26°C to 104°C |
Flow Capacity | 1/4" Main Valve: Cv = 0.8 |
MEDIA CONTACT MATERIALS | |
Body | Brass, 303 Stainless Steel or 316 Stainless Steel |
Seat, Main Valve | PCTFE (Except: 44-13X2-XXX2, PTFE) |
Seat, Vent Valve | PTFE: 300 and 600 psig / 20.7 and 41.4 bar outlet |
O-Rings | FKM (Viton®-A) |
Back-up Rings | PTFE |
Gaskets | PCTFE |
Remaining Parts | 300 Series Stainless Steel, 17-4 PH Stainless Steel, 17-7 Stainless |
OTHER | |
Cleaning | CGA 4.1 and ASTM G93 |
Weight (without gauges) | 6.25 lbs / 2.8 kg |
TESCOM减压阀44-1300系列介绍
TESCOM 44-1300系列是一款高压、高流量减压阀，采用排气式平衡阀设计。44-1300 系列提供 Cv 值 0.8 和 2.0 两种规格。可选配球形阀和气动加载阀。
应用领域
• 商业潜水 - 呼吸空气
• 特殊气体混合调节 - 硬式潜水服潜水
• 高压管式拖车气体减压
特点和优势
• 大活塞传感器，灵敏度极佳
• 平衡阀设计，确保下游压力稳定
• 大尺寸手柄，可快速、低扭矩地调节压力
• 标配排气功能
• 可选配压力表接口
• 提供球形阀和气动加载阀型号（仅限非排气型）
• 提供法兰连接
TESCOM 44-1300 Series is a high pressure, high flow pressure reducing regulator that offers a venting and balanced valve design. The 44-1300 Series provides Cv = 0.8 and 2.0. Dome and air load options are available.
Applications
• Commercial diving - breathing air
• Special gas mix regulation hard suit diving
• High pressure tube trailer gas reduction
Features and Benefits
• Large piston sensor gives excellent sensitivity
• Balanced valve design ensures stable downstream pressure
• Large handknob provides fast low-torque pressure settings
• Venting is standard
• Available with gauge ports
• Dome and air loaded models are available (non-venting only)
• Flanged end connections available

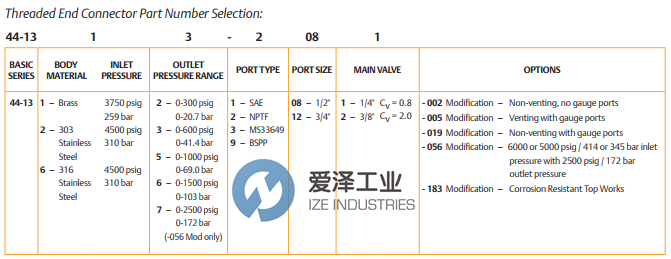

TESCOM减压阀44-1300系列选型
TESCOM减压阀44-1300系列其他常用型号：
TESCOM 44-1315-2082-002
TESCOM 44-1316-2081-002
TESCOM 44-1313-2082-005
TESCOM 44-1312-1081-005
TESCOM 44-1313-2081-005
TESCOM 44-1312-2081-005
TESCOM 44-1313-2121-005
TESCOM 44-1312-2082-005
TESCOM 44-1313-2122-005
TESCOM 44-1315-2081-005
TESCOM 44-1315-2082-005
TESCOM 44-1315-2121-005
TESCOM 44-1315-2122-005
TESCOM 44-1316-2081-005
TESCOM 44-1316-2082-005
TESCOM 44-1316-2122-005
